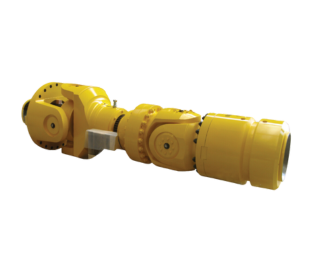

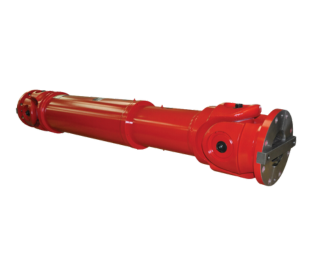

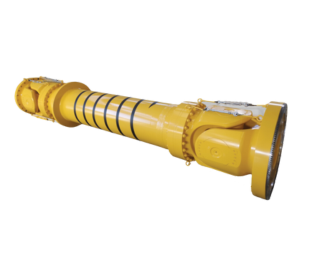

Our offer of Cardan transmissions includes a range of products that go from the series XA to the XF, provide excellent operational safety, long life of service and lower costs of maintenance.
The main constructive characteristics are as follows:
- Yoke created in a unique piece
- Great working angle and least torsion under your heavy load
- Selected materials and thermal treatments
- Optimal weldings
- Perfect planning and realization of the single components
- Anti-bending system up to the size 350 for the reduction of vibrations at the high speed of rotation
Torque range [kNn]
0.18 – 14.000
Flange diameter [mm]
58 – 1.400
Max. working angle – ß [°]
5 – 35
COUPLINGS
A wide range of couplings of our offer covers many different types of requests.

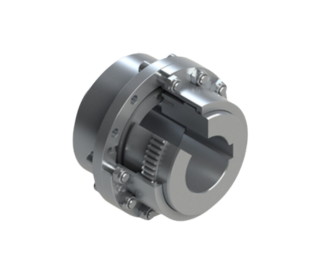

GEAR COUPLINGS
Toothed oscillating couplings have been designed to compensate all the angular and parallel misalignment that may be found connecting the shafts of two machines.
Toothed oscillating couplings assure freedom of movement, transmission safety and operating reliability.
MANUFACTURE FEATURES
- exclusive use of alloy, pressed and heat-treated steels;
- precise machining with C.N.C. machines;
- special convex toothing allowing angular misalignment of +1° on each half coupling;
- application versatility thanks to the possibility of obtaining different mountings only by simply inverting the toothed hubs in the same coupling;
- easy lubrification thanks to two grease nipples being fitted on each half-coupling;
Torque [Nm]
1.700 – 835.000
Dimensions [mm]
111 – 825

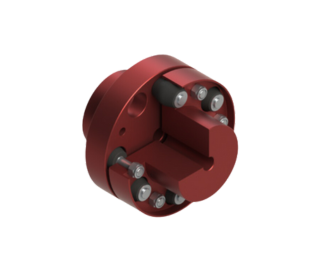

ELASTIC COUPLINGS WITH PINS
Universal elastic couplings are designed to absorb torsional knocks, and vibrations and to compensate for any misalignment in the angular and parallel connection of two shafts rotating machines, guaranteeing at the same time the required transmission of the power.
MANUFACTURE FEATURES
- Half couplings steel C40 UNI 7845, hot-pressed or forged and normalized
- Pins steel C40 UNI 7845, lathed and grinded for forced mounting
- Rubber elements in oil-resistant synthetic rubber NBR 70 ShoreA with canvas insertions
- Operating temperature from -30° a +120°C (On request be possible to have rubber elements with higher resistance)
- Accurate machining by using CNC machines
- Perfect dynamic balance
Torque [Nm]
46 – 358.000
Dimensions [mm]
60 – 1250

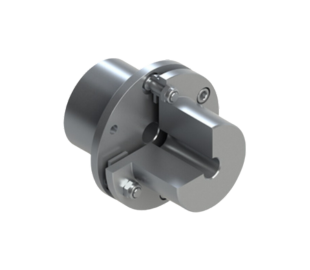

FLEXIBLE DISC COUPLINGS
Flexible disc couplings are designed to permit shafting between two engines and to absorb impacts and vibration. Also, it’s synonymous of security and guarantees shafting transmission even without a perfect alignment.
MANUFACTURE FEATURES
- No torsional clearance, necessary for using on engine with a lot of starts, stops and reversal of control
- No lubrication
- No maintenance
- High torsional stiffness
- Ability to work in every condition from -30 °C to + 240°C
- The possibility to replace element blades without displacement of the coupled machine.
- Exclusive use of forged steel, and the possibility to use with alloy or inox steel
- Blades elements are built of AISI 304
Torque [Nm]
100 – 146.000
Dimensions [mm]
80 – 630

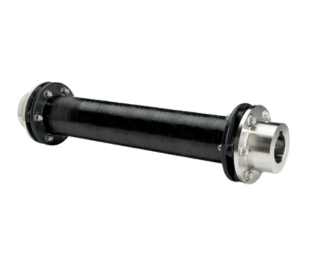

Rexnord Addax CT Disc Couplings
Lightweight, floating shaft spacer coupling specifically designed for the harsh rigours of cooling tower applications.
- Configured-to-order based on application requirements
- Custom spacer lengths up to 7.000 mm
- Continuous torque ratings up to 4.090 Nm
- Shaft diameters up to 324 mm and bore capacity up to 130 mm
- Dynamically balanced to meet ISO 1940 G6.3 requirements as standard
Torque [Nm]
408 – 4.090
Dimensions [mm]
70 – 324

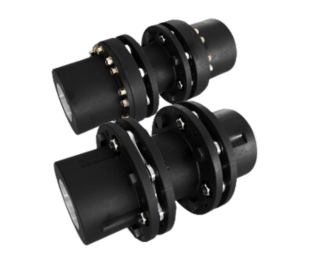

Thomas Disc Couplings
Thomas Disc Couplings are torsionally rigid, all-metal flexible couplings that require no regular maintenance or lubrication. Angular, parallel, and axial misalignment are accommodated through flexible disc packs which can be visually inspected without disconnecting equipment.
- All-metal construction provides minimal backlash and low restoring forces
- Require no lubrication
- Visual inspection of disc packs without the need to disconnect equipment
- Inherently balanced as manufactured, delivering low vibration even at maximum allowable speeds
- Compensate for angular, parallel (radial), and axial misalignment
- Application flexibility – More than 25 standard sizes with close-coupled, spacer, and floating shaft designs
- API 610 / ISO 14691 & API 671 / ISO 10441 compliant designs
- Engineered-to-order capabilities for custom features or special requirements
Torque [Nm]
594 – 189.000
Dimensions [mm]
70 – 529
