Thanks to the partnership with the best producers of Planetary gearboxes, BFT Drives is proud to offer a wide range of Planetary gearboxes with compact sizes but a high torque range that can be applied in a range of different fields like mobile, drilling, marine, mining and industrial.

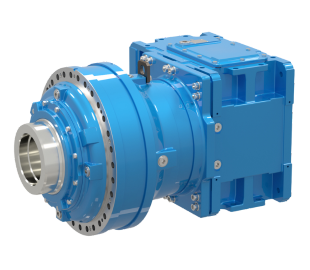

Brevini has a complete range of modular design planetary gearboxes for industrial applications. It combines high performance with low cost and compact size, excellent reliability, simple installation and reduced maintenance. Brevini’s industrial planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications.
Torque [Nm]
200 – 2.170.000
Max Torque [Nm]
1000 – 5.400.000
Ratio
3.5 – 3000
Versions
In line – Right angle
Dinamic Oils planetary gearboxes have a design that ensures high performance in compact dimensions, they are suitable for a wide range of applications including mobile machines, drilling, marine, mining and industrial machinery. Countless customized solutions make this gearbox range adaptable to any kind of application where compact and reliable mechanical transmission is needed.
Torque [Nm]
600 – 2.500.000
Max Torque [Nm]
1000 – 3.000.000
Ratio
3.5 – 3.500
Versions
In line – Right angle
Bonfiglioli designs, manufactures and distributes a complete range of gearmotors, drive systems and planetary gearboxes to satisfy the most demanding needs for industrial processes, automation, mobile and renewable energy applications.
Torque [Nm]
1000 – 1.286.700
Max Torque [Nm]
2400 – 2.000.000
Ratio
3.4 – 2.916
Versions
In line – Right angle
Reggiana Riduttori is dedicated to the production of planetary gears and wheel gears which are entirely made in Italy. Products are manufactured with top quality raw material. The assembly and storing phases are strongly influenced by a high innovation level which is guaranteed thanks to constant investments in research and development.
Torque [Nm]
680 – 2.400.000
Max Torque [Nm]
1.200 – 3.700.000
Ratio
3.2 – 2.700
Versions
In line – Right angle
WHAT ARE THE ADVANTAGES OF THE PLANETARY GEAR UNIT?
WEIGHT
A planetary gearbox weighs about 2/3 less than a correspondingly rated traditional gear unit, which means that supporting structures can be made lighter, and maintenance is made easier in the event that the unit needs to be removed.
DIMENSIONS
The planetary gearbox is significantly more compact, and therefore easier to install, than traditional units (worm, coaxial, parallel/right angle shafts).
COST
Thanks to high volume production of planetary trains, substantial economies of scale are obtainable, with the result that prices are highly competitive when compared to those of correspondingly rated traditional gear units.
HIGH TORQUE
The planetary gear train is characterized by multiple points of meshing contact, and with loads spread across at least three planet gears, high torques can be transmitted even with a unit of relatively compact dimensions.
REVERSIBILITY
Planetary gearboxes function in the same way and deliver the same performance in both directions of rotation. This is a notable advantage in the case of machines that alternate regularly between clockwise and anticlockwise rotation.
HIGH TRANSMISSION RATIOS
Adding standard planetary reduction stages, units with transmission ratios over 3000 can be supplied.
LOWER SENSIBILITY AGAINST SHOCKS
This is due to to higher design rigidity since there are shorter axis and internal gear force compensation
L10 LIFE ACHIEVED ONLY BY SATELLITE BEARINGS
External loads on reducer shafts do not influence L10 life of gear supporting bearings
REDUCE EXPENSES FOR MOUNTING
No expensive basement are request for planetary reducers as it is possible to mount them directly to the machine structure
MAINTENANCE WITHOUT SPECIAL TOOLS
