hydraulic motors & pumps
For applications in mobile machinery such as constructions equipment, excavators and cranes our offer includes a range of hydraulic pumps and motors some of the very best producers.
Dana Brevini Motion Systems Fluid Division’s product portfolio stretches from mining and mineral processing to marine technologies, the construction and earthmoving industry, agriculture, renewable energies, industry and material storage and handling.
Our offer of this producer includes a range of axial piston pumps (fixed and variable displacement), open and closed loop.
Displacement range
[cm³/rev]
10 – 178
Max flow
[l/min]
258
Max working pressure
[bar]
430
Max speed
[rpm]
3000
The offer also includes a range of axial piston motors (fixed and variable displacement), and open and closed loops.
Displacement range
[cm³/rev]
10 – 216
Max flow
[l/min]
626
Max working pressure
[bar]
430
Max speed
[rpm]
8000
Linde Hydraulics combines components such as hydraulic motors, hydraulic pumps, valves and electronic control units into a single system and creates efficient overall solutions thanks to our intelligent blend of hydraulics, electronics and mechanics.
Our offer of this producer includes a range of high-pressure pumps for open loops and variable pumps for closed loops.
Displacement range
[cm³/rev]
55 – 280
Max flow
[l/min]
563
Max working pressure
[bar]
500
Max speed
[rpm]
2550
Our offer of this producer includes a range of fixed and variable displacement motors in both swash plate and bent axis designs.
Displacement range
[cm³/rev]
35 – 280
Max. power
[kw]
474
Max working pressure
[bar]
500
Max speed
[rpm]
5000

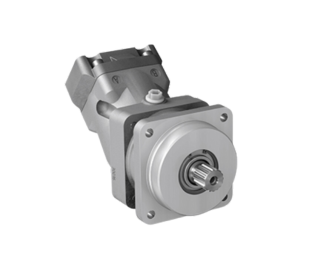

Sunfab is a world leader in hydraulics with head office and production plant located in Hudiksvall, Sweden. Hydraulic motors are produced according to ISO, SAE, and DIN standards as well as cartridge motors.
Our offer of this producer includes a range of hydraulic fixed displacement motors.
Displacement range
[cm³/rev]
10 – 130
Max power
[kw]
285
Max working pressure
[bar]
400
Max speed
[rpm]
8800

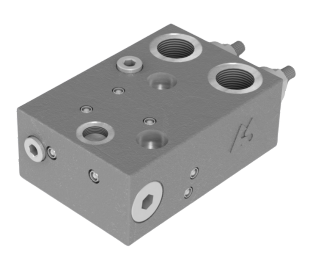

Dual counterbalance valves
The offer includes dual pilot-assisted dual counterbalance valves, with brake release port for axial piston motors. Zinc-plated steel manifold for the marine environment.
SAI is a leading company in the design and production technology of crankshaft radial piston hydraulic motors.
SAI’s range of products includes radial piston hydraulic motors for a wide variety of applications: agriculture, forestry, construction and earth moving, drilling, mining, marine and industrial.
The wide range of SAI hydraulics motors, characterized by radial pistons and crankshaft design, offers solutions with fixed, double and variable displacement from 25 cc/rev up to 10.000 cc/rev.
SAI offers complete wheel motors to be coupled with single or double stage planetary gearboxes and/or drum brakes; compact wheel drive units including planetary gerabox and/or integrated negative disc brakes.
Handbrakes and emergency brakes with hydraulic control (negative, multi-disc in oil) with output shaft, that can be applied to the motor. Braking torque: from 500 Nm, up to 8.000 Nm.
M+S Hydraulic is a leading manufacturer of hydraulic motors, steering units, valves, brakes and accessories.
The company is ISO 9001:2000 certified by TUV for guaranteeing quality production and high technology.
Displacement range
[cm³/rev]
25 – 800
Max flow
[l/min]
240
Max working pressure
[bar]
275
Max output power
[kW]
64
